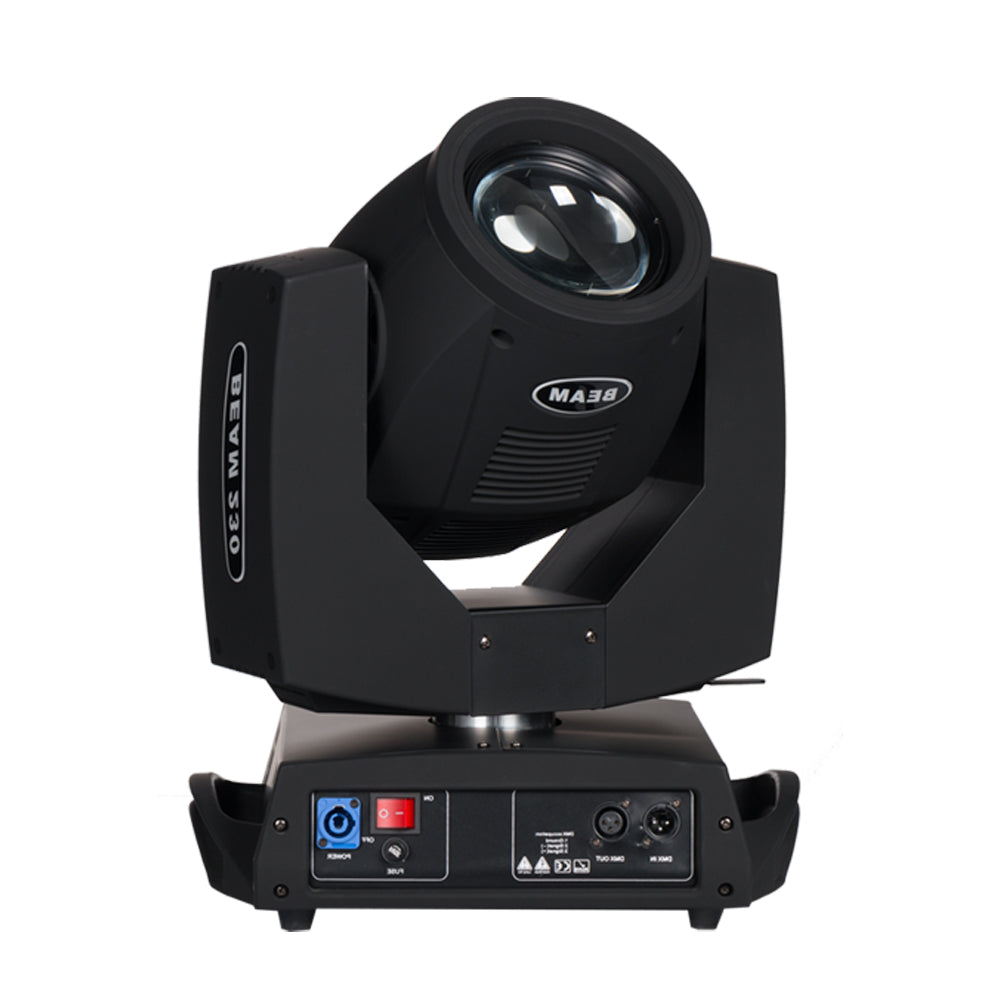

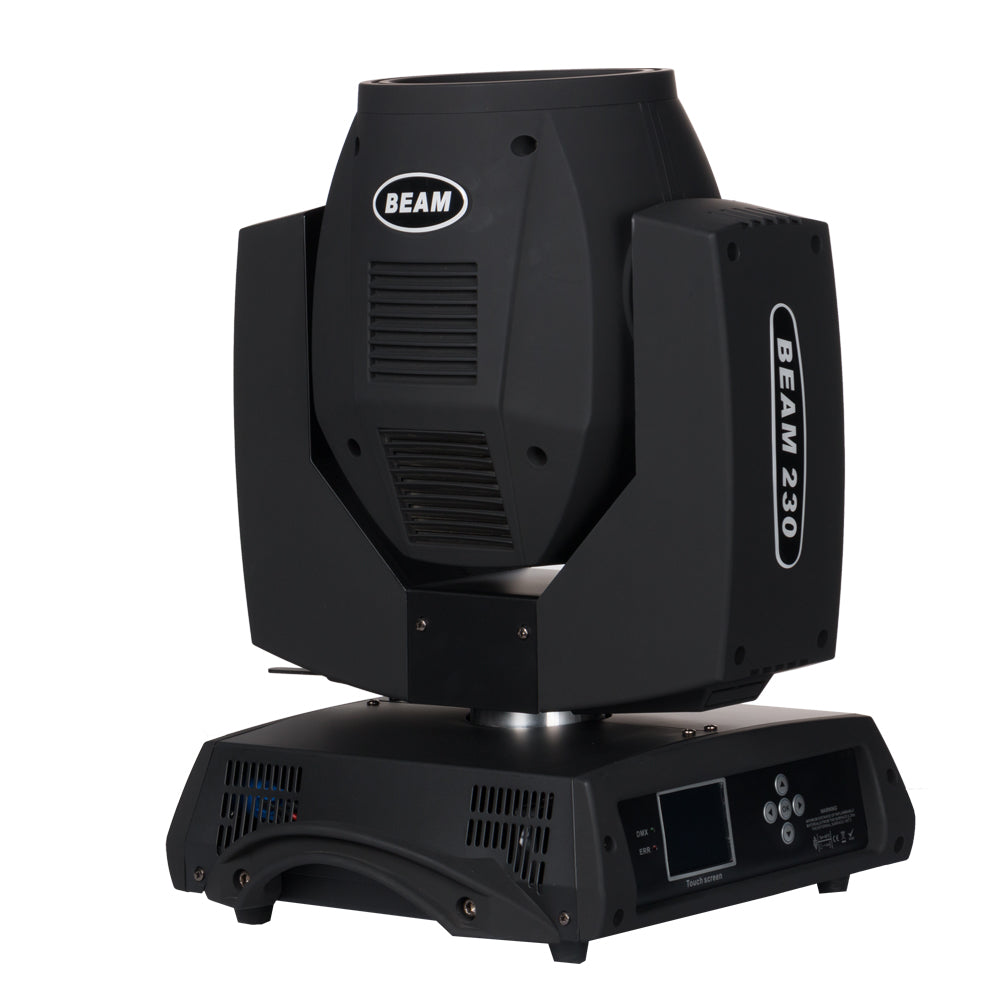

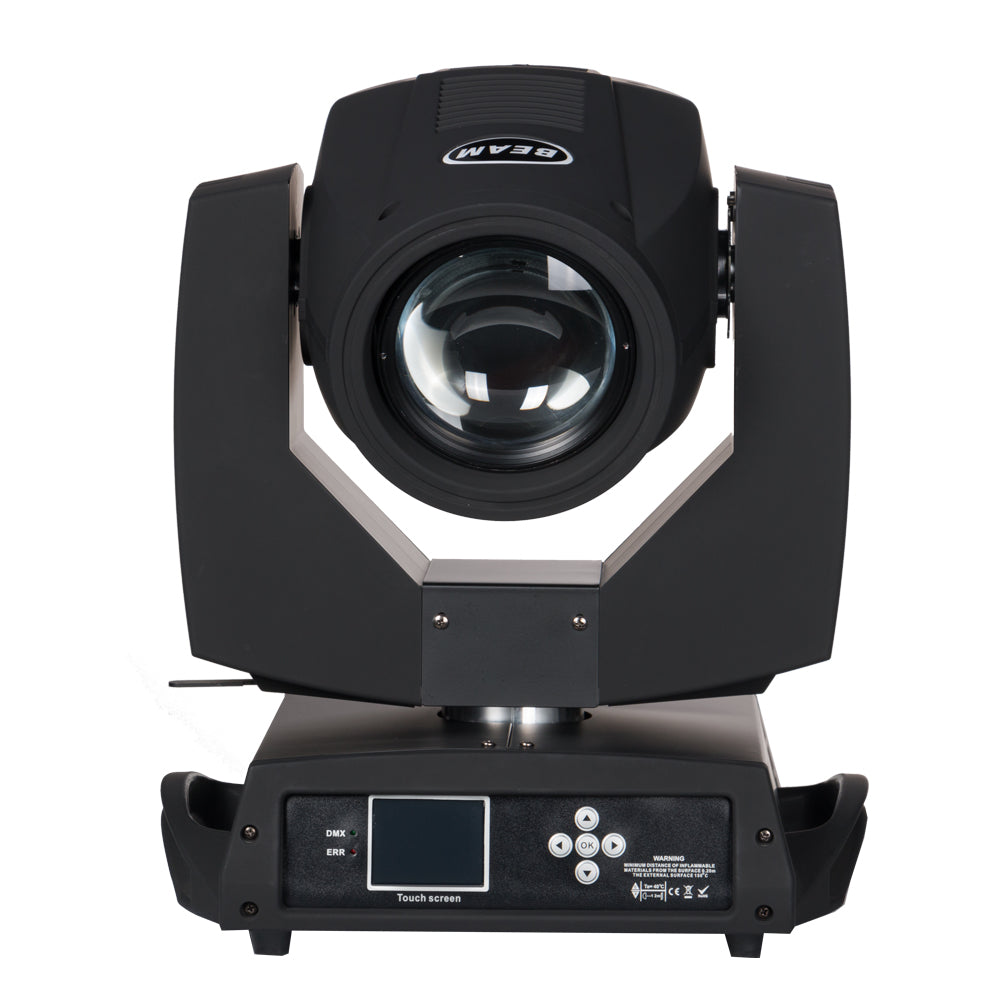

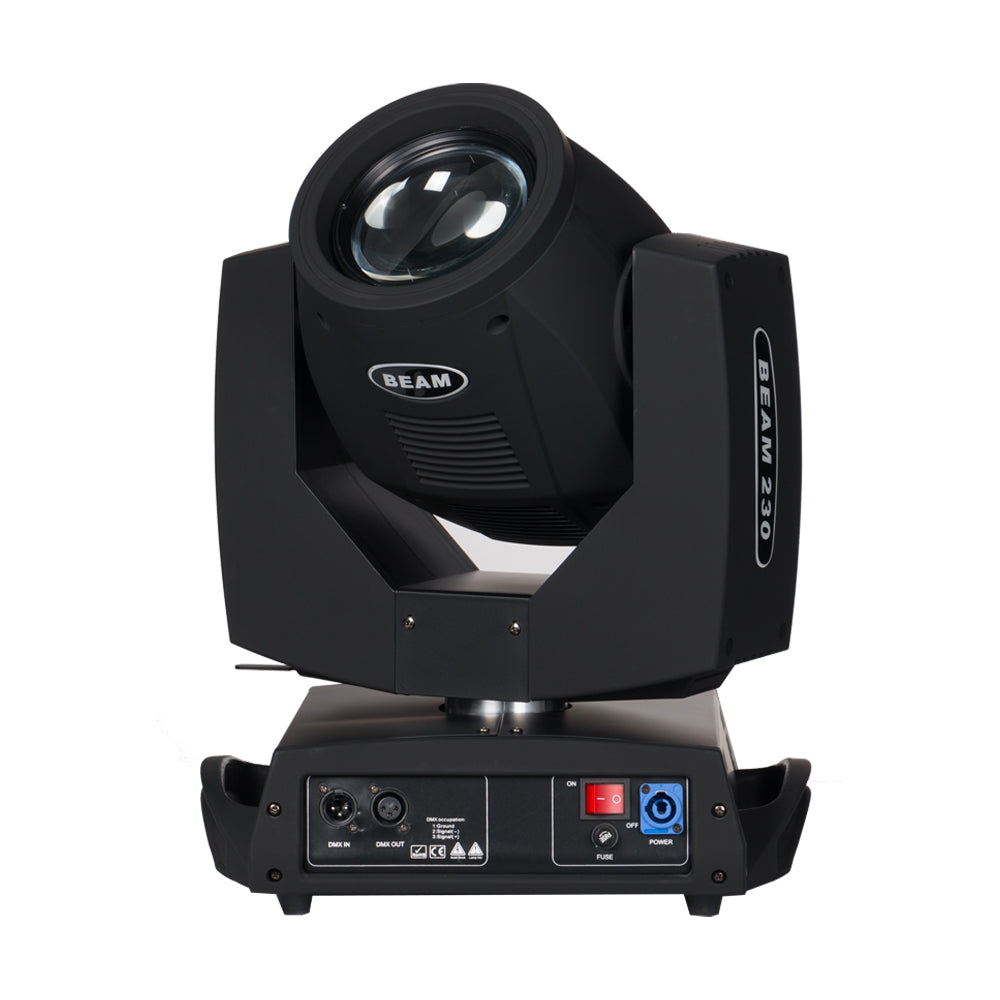

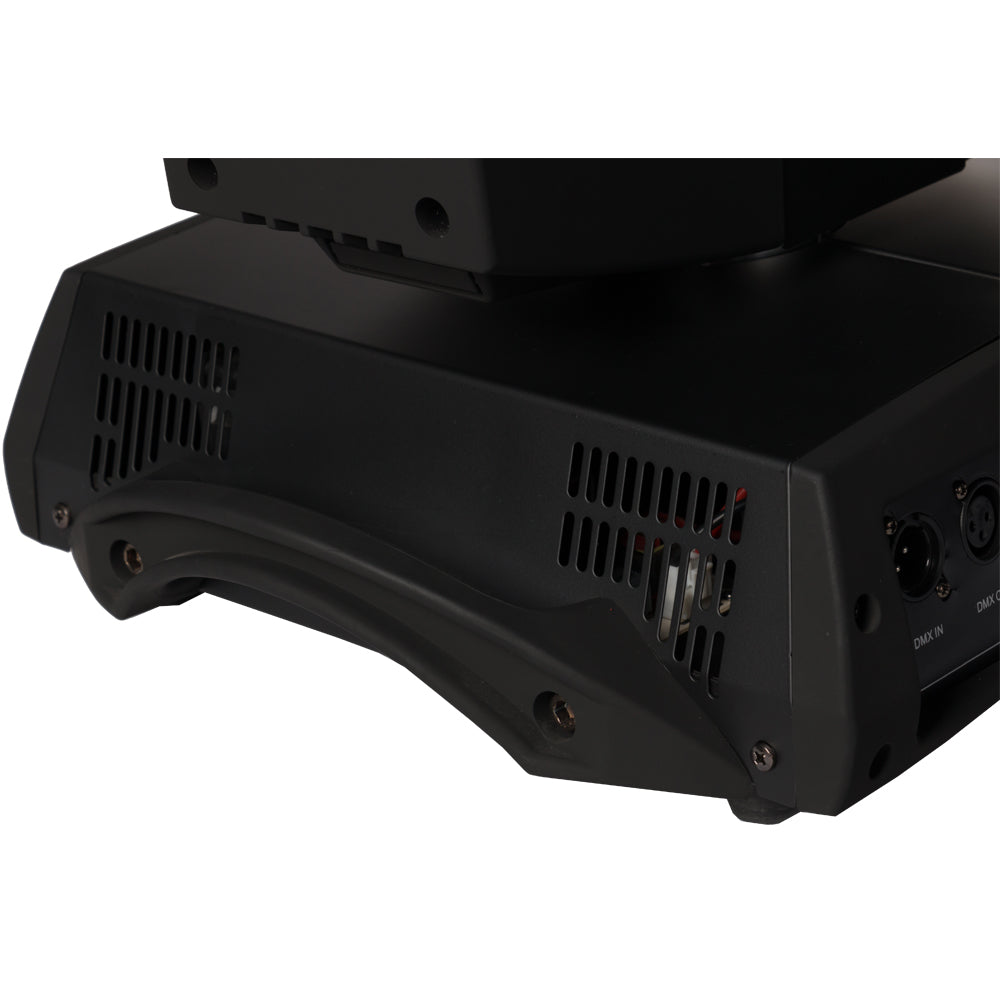

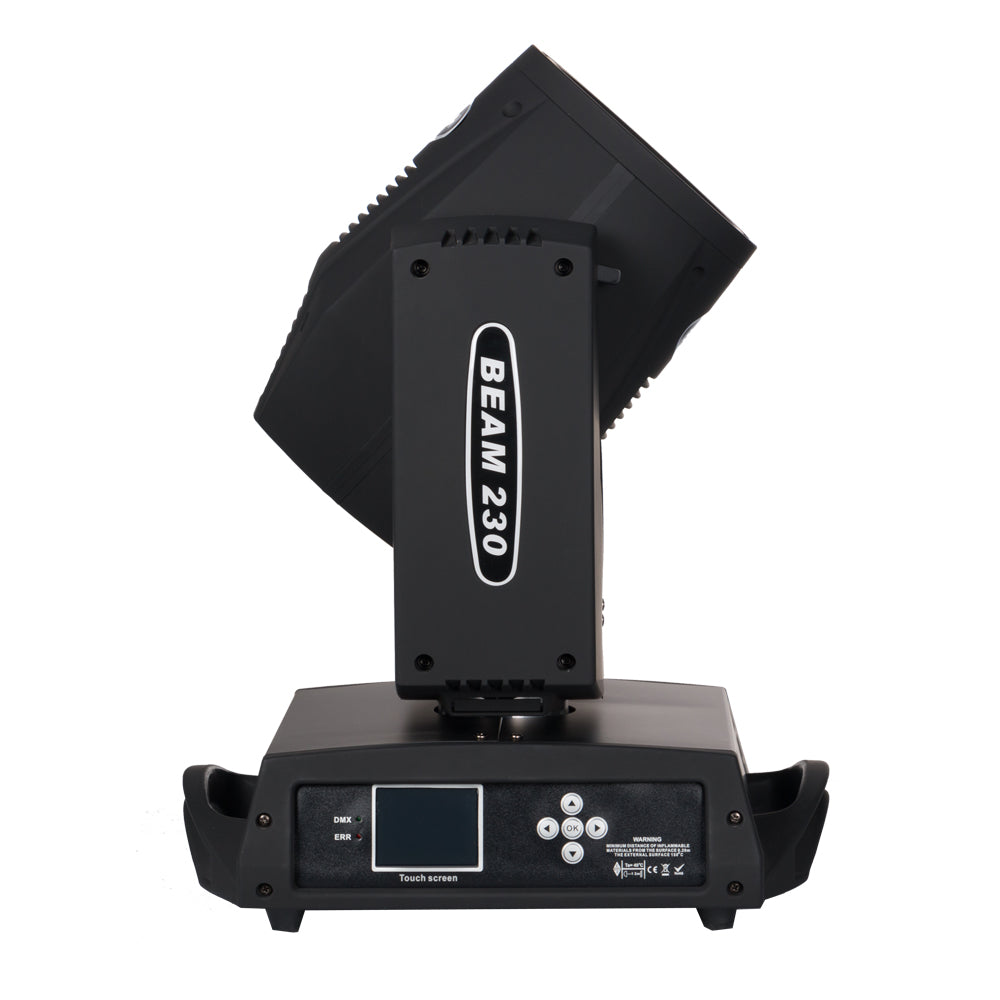

MH002 – OSRAM 7R – 230W – Sharpy Beam Moving Head Light

230W 7R Moving Head Beam Light – High-Performance Stage Lighting

Power & Electrical Specifications:

• Input Voltage: AC100V-240V, 50Hz-60Hz
• Rated Power: 350W
• Light Source: OSRAM Bulb 230W (7R)
• Ballast: Electronic Ballast
• Color Temperature: 8500K
• Lamp Life: 2000 Hours

Motor & Movement:

• Motor: 13 Mute Stepper Motors
• Rotation Angle:
  • Horizontal (Pan): 540°
  • Vertical (Tilt): 270°

Color & Effects:

• Color Wheel: 14 Colors + White + Rainbow Effect
• Pattern Wheel: 17 Patterns + White + Rainbow Effect
• Prism: Rotating Octahedral Prism, Bi-Directional Rotation with Positioning Function, 0-100% Prism Linear Regulator
• Fog Effect: 0-100% Linear Regulator
• Dimmer: 0-100% Focus Linear Regulator
• Strobe: Double-Chip Flash, Variable Strobe Effect (0.5 to 10 Times/Sec)

Control & Communication:

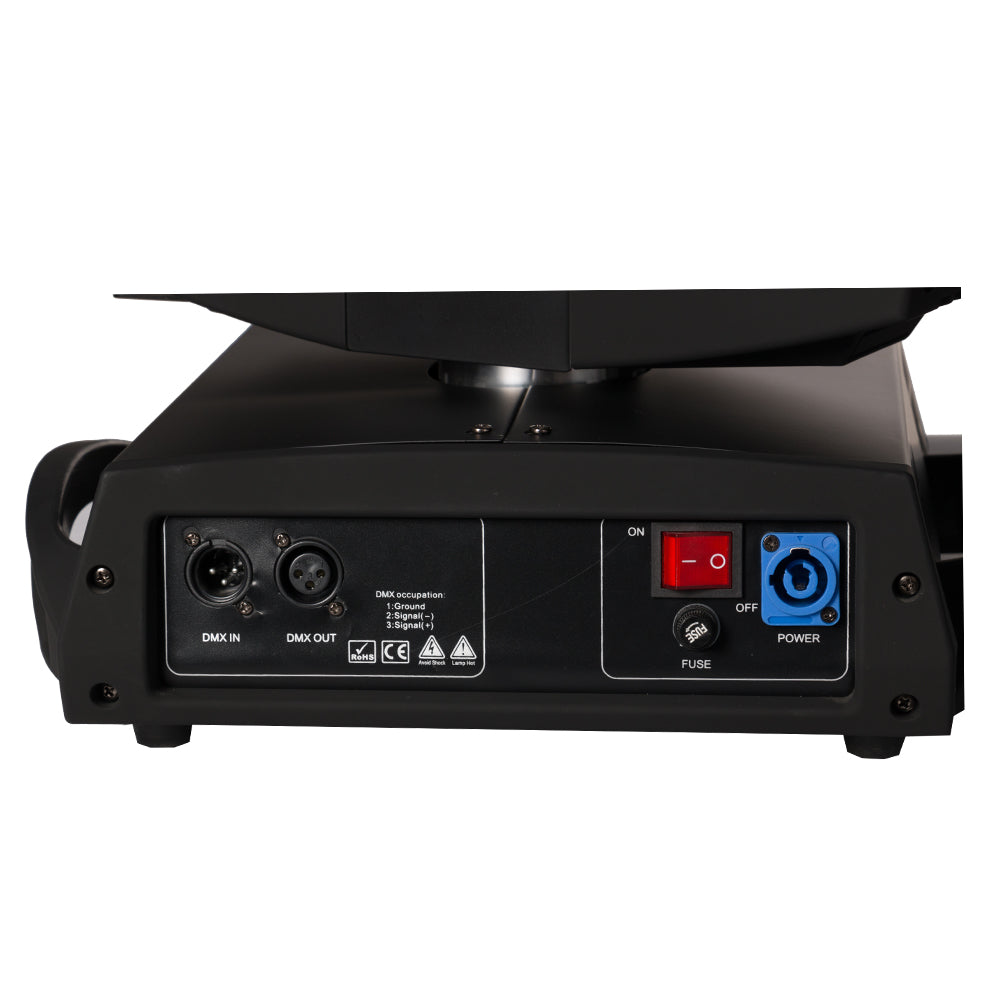

• Control Mode: International Standard DMX512 Signal (3-Core DMX512 Interface)
• Communication Protocol: USITT DMX-512
• DMX Channels: Standard 16-Channel Mode
• Display: English LCD Graphics Display
• Special Features: Built-in Lighting Effects Program, Voice-Controlled Simultaneous Effects

Optical System:

• Lens: High-Precision Quartz Lens Combination for Minimum Light Loss

Build & Durability:

• IP Rating: IP20 (Indoor Use)

Dimensions & Weight:

• Packing Size: 45(L) × 43(W) × 53(H) cm | Weight: 21.5kg
• Flight Case Size: 75(L) × 66(W) × 68(H) cm | Weight: 71kg (2 pcs)
